Kingst LA5032 USB Logic Analyzer 500M max sample rate,32 Channels,10B samples, MCU,ARM,FPGA debug tool, English software Description :




You can download the software and user guide:



http://www.qdkingst.com/en

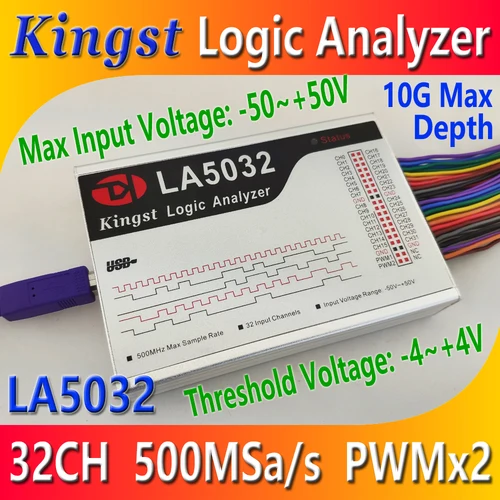

   LA5032 is a high-performance logic analyzer with 32 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.
LA5032 can sample 32 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Features:
Portable and lightweight
500M sampling rate @ full channels
Large sampling depth and support compression
The built-in PWM generator
Compatible USB2.0/3.0 interface
Powerful software and easy to use
Support online upgrade automatically

Specification:

Input channels number: 32
Max sampling rate: 500M
Measurement bandwidth: 80M
Min pulse width can be captured: 6.25ns
Hardware memory size: 4Gbits
Hardware sampling depth: 100M/channel
Max compressed depth: 10G/channel
Input voltage range: -50V ~ +50V
Input impedance: 220KΩ, 12pF
Adjustable threshold voltage: -4V ~ +4V, step: 0.01V
PWM channels number: 2
PWM frequency range: 0.1 ~ 20MHz
PWM frequency adjust step: 10ns
PWM pulse width adjust step: 5ns
PWM output voltage: +3.3V
PWM output impedance: 50Ω
Standby current: 400mA
Max operating current: 480mA
Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)
Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...

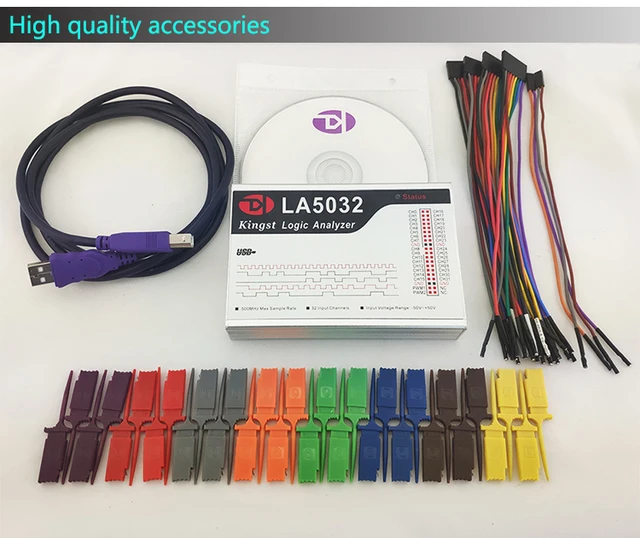

Shipping List:

1、LA5032 Logic Analyzer     x1

2、9P Test Lead Set                x4

3、2P Test Lead Set                x2

4、USB 2.0 Cable                    x1

5、CD- ROM                             x1

6、Test Hook Clip                    x32
