4Axis NEMA23 Stepper Motor:Open Loop Stepper Motor 3N.m 3A DC Motor+Driver DM556/DM556/TB6600 for CNC Engraving Milling Machine Description :


Note Note Note:Belarus, Kyrgyzstan, Kazakhstan. Seller-defined logistics requires buyers to pick up the goods themselves.

If you need home delivery, please contact customer service from here. Pay extra for delivery

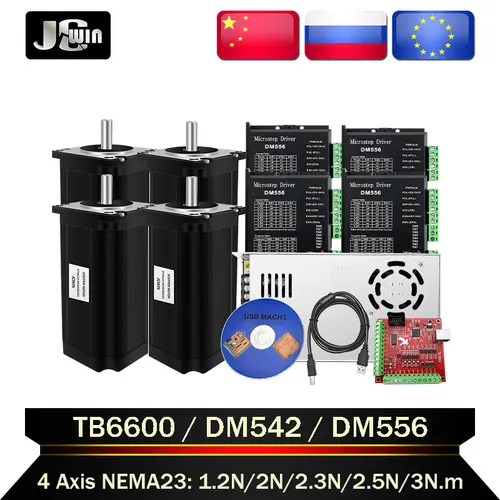

Product number:

4*NEMA23 Stepper Motor 1.2N/2.2N/2.3N/2.5N/3N

4*Driver { TB6600/DM542/DM556 }

1*350W  36V power supply

1*4axis MACH3 control board




4Axis Nema 23
stepper motor

Single axis motor


Double shaft motor





PRODUCT SIZE

Unit=mm

MOTOR SPECIFICATIONS

Model No.

57HS56-3004

57HS76-3004

57HS82-3004

57HS100-3004

57HS112-3004

Step Angle(°)

1.8

1.8

1.8

1.8

1.8

Rated Voltage(V)

2.85

2.7

4.2

3

3.9

Rated Curren (A)

3

3

3

3

3

Phase Resistance (Ω)

0.95

0.9

1.4

1

1.3

Phase Inductance(mH)

2.8

3.5

5

4.5

6.5

Holding Torque(Kg.cm)

12

20

22

25

30

Detent Torque (g.cm Max)

400

680

700

1000

1200

Rotor Inertia (g.cm²)

300

480

510

680

800

Motor Length (mm)

56

76

82

100

112

Lead Wires No.

4

4

4

4

4

Motor Weight (Kg)

0.7

1

1.2

1.4

1.7

Torque(N)

1.2

2.2

2.3

2.3

3





PRODUCT DISPLAY

detailed description








High-strength metal shell,

sturdy and durable


Imported silicon steel rotor,

stable output


Pure copper enameled wire,

better heat dissipation






WIRING DIAGRAM





Microstep Driver


3 models to choose from






PARAMETERS

MODEL

MD556

MD542

TB6600

VOLTAGE

20-50V

20-50V

9-42V

CURRENT

1-5.6A

1-4.2A

1-4.2A

SUBDIVISION

400-25600400-25600P/r

400-25600400-25600P/r

400-25600400-6400P/r

APPLICABLE MOTOR

42/57 2-phase stepper motor

42/57 2-phase stepper motor

42/57 2-phase stepper motor

TEMPERATURE

0℃-50℃

0℃-65℃

10℃-45℃

WEIGHT

0.28KG

0.26KG

0.2KG




MACH3


Control Board


Limit switch

Estop switch

Probe switch

Home switch









POWER SUPPLY


S-350W/36V




PARAMETERS

MODEL NO.

S-350-36

DC output voltage

36V

Output voltage range

36V

Rated output current

9.7A

Output current range

0-9.7A

Wave and noise

240mVp-p

Inlet stability

±0.5%

Load stability

±0.5%

DC output power

350W

Efficiency

83%

AC input voltage range

90-132VAC/180-264VAC

Output current

6.5A/115VAC4A/230VAC

AC rush current

50A/115V50A/230V

Leakage current

<3.5mA/240VAC

Overload protection

40.5-46.5V

Over-Voltage protection

105%-135% ratedoutput voltage

Temperature coffcient

±0.03%/℃ (0-50℃)

Weight

1.15Kg
