SURPASS HOBBY Rocket 550 Brushless Motor 5mm Shaft Motors Brushless 60A ESC 80A for 1/10 1/12 Rc Car Monster Truck Buggy on Road Description :



Rocket 550 Brushless motor
Features:
High RPM oversized bearings
4 pole 12 slot hi-torque motor design
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Using advanced software interface to set up or update the software
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
Built-in switch mode BEC has powerful output to supply all the electronic equipments
Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection

Motor Specifications:
Brand: Rocket
Product: 550
Colour:Orange
Material:Aluminum alloy
KV(RPM/Volt): 4300
Max voltage: 12V
Max amps: 100A
Max power(W): 1200W
Item weight: 230g
Item size: 56 * 36mm
Idle current: 3.7A
Max RPM: 50K
Shaft: 5mm
Length of extend shaft: 17mm
Connector: 4mm banana plug


Rocket 80A Brushless ESC
Features:

Enhanced throttle response, excellent acceleration
strongbrakes and throttle linearity
Using advanced software interface to set up or update thesoftware
Using both of LCD and LED program card to makeadjustments
Multiple protection features: Low voltage cut-offprotection, over-heat protection and throttle signal lossprotection
Compatible with NOVAK, ROCKET, LRP, ORION brushlessmotor

Specifications:
Brand: Rocket
Cont. Current: 80A
Burst Current: 570A
Resistance: 0.0003ohm
Suitable Car: 1:10 On-road & Off-road Car/Trucks,SCT
Battery Cell: 2-4s Lipo/5-12s NiMh/NICd
BEC Output: 6V/3A
Suitable Brushless Motor: 4P SL 3660

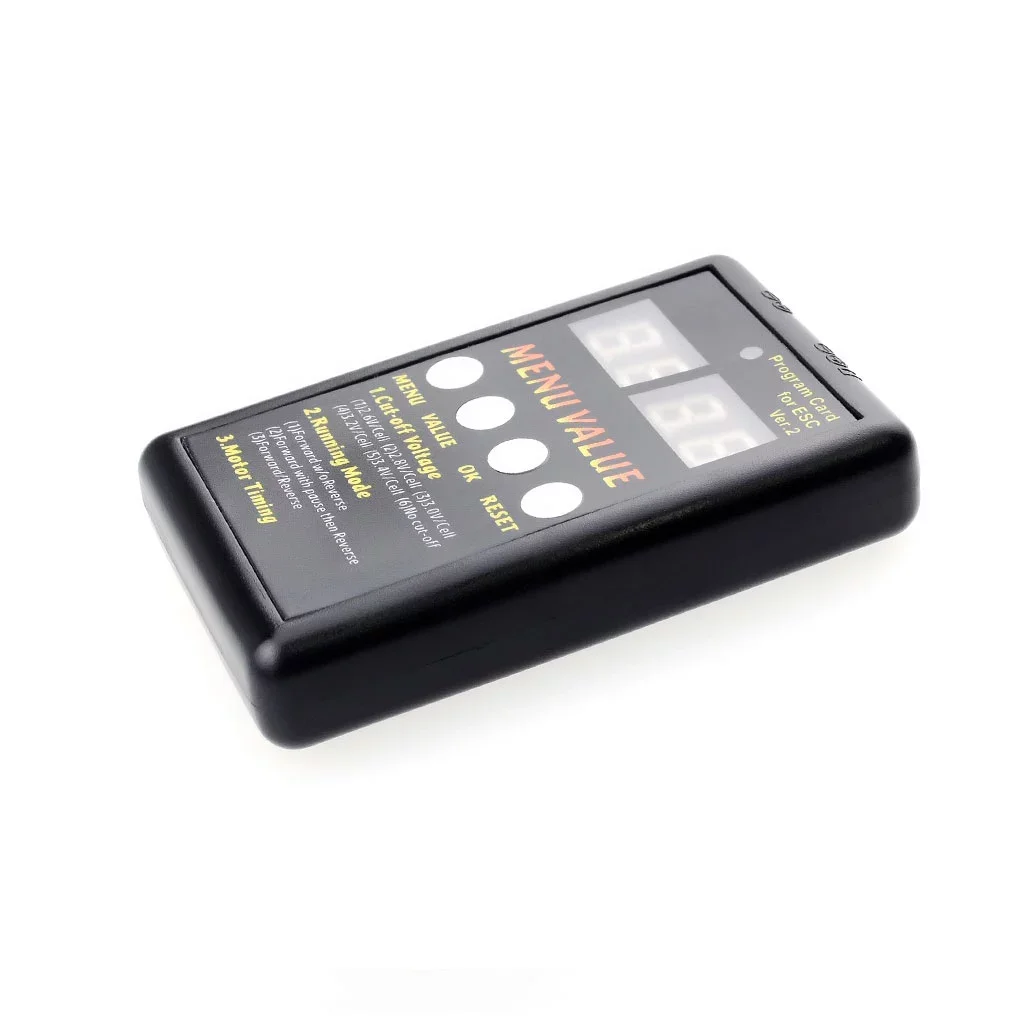

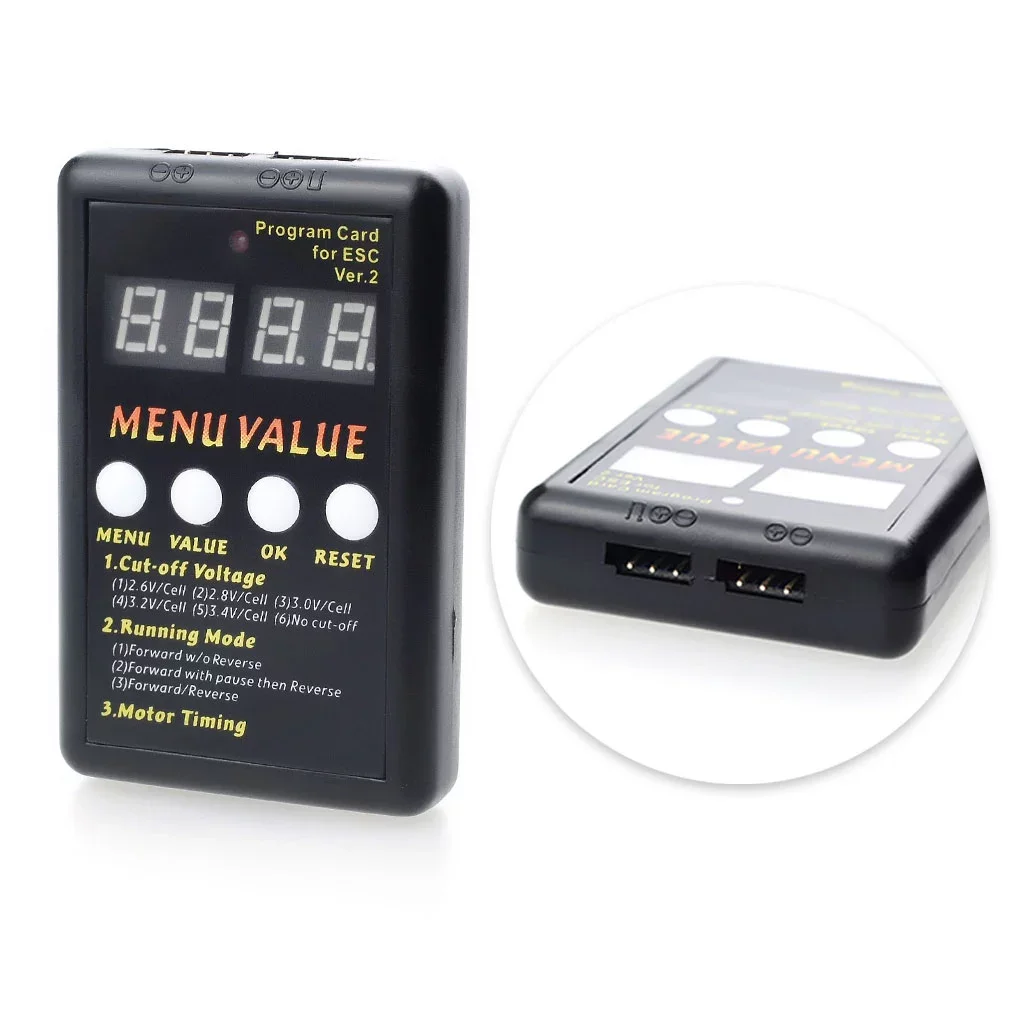

Program card
Specification:

Size : 70*45*13mm(L*W*H)
Weight : 23g
Suitable ESC :
ZTW A-Series ESC for 1/10&1/18 Car and the function of turbo is optional.
Mystery Fire Dragon Series Car Brushless ESC.


Programable Items
1Cut-off Voltage : (1) 2.6V/Cell (2) 2.8V/Cell (3) 3.0V/Cell (4) 3.2V/Cell(5) 3.4V/Cell (6) No cut-off
2 Runnig Mode : (1) Forward w/o Reverse (2) Forward with pause then Reverse (3)Forward/Reverse
3 Motor Timing : (1) Very Low (2) Low (3) Normal (4) High (5) Very High
4 Initial Acceleration : (1) Low (2) Medium (3) High (4) Very High
5 Throttle Percent Reverse : (1) 20% (2) 30% (3) 40% (4) 50% (5) 60% (6) 70% (7) 80%(8) 90% (9) 100%
6 Throttle Limit : (1) 0% (2) 20% (3) 30% (4) 40% (5) 50% (6) 60% (7) 70%(8) 80% (9) 90%
7 Percentage Braking : (1) 10% (2) 20% (3) 30% (4) 40% (5) 50% (6) 60% (7) 70%(8) 80% (9) 100%
8 Percentage Drag Brake : (1) 0% (2) 4% (3) 8% (4) 12% (5) 15% (6) 20% (7) 25%(8) 30%
9 Motor Rotation : (1) Normal (2) Reverse
10 Neutral Range : (1) 2% (2) 3% (3) 4% (4) 5% (5) 6% (6) 10%

Package List options :
550 xxxx KV xxA:

1 * 550 Sensorless Brushless Motor
1 *  Brushless ESC



550 xxxx KV xxA PC:

1 * 550 Sensorless Brushless Motor
1 *  Brushless ESC
1 * Programming card
